1.4km Mpo Single Mode Optical Module 40g Qsfp Psm Ir4 , 40g Optical Module

1.4km Mpo Single Mode Optical Module 40g Qsfp Psm Ir4 , 40g Optical Module

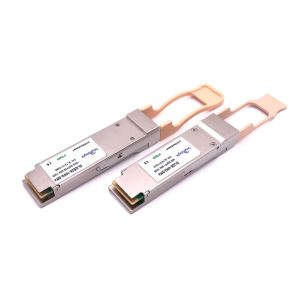

Overview

40G QSFP PSM IR4 is a parallel 40Gb/s Quad Small Form-factor Pluggable (QSFP+) optical module. It provides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gb/s operation for an aggregate data rate of 40Gb/s on 1.4km of single mode fiber.

An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP+ module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a z-pluggable 38-pin connector per MSA requirement.

Features

4 Parallel lanes design
Up to 11.2Gb/s data rate per channel
Aggregate Bandwidth of up to 44.0G
QSFP+ MSA compliant
Up to 1.4km transmission on single mode fiber (SMF)
Maximum power consumption 3.5W
Single +3.3V power supply
Operating case temperature: 0 to 70oC
RoHS-6 compliant

Parameter

P/N	QSFP-40G-IR4-PSM
Datarate	40G/ps
Distance	1.4KM
Wavelenth	4 CWDM Lane 1270 1290 1310 1330
Media	SMF
DDM/DOM	YES
Connector	MPO
Application	40G Ethernet / 40G Infiniband
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V
Certification	CE/FCC/RoHS/TUV/UL
Brand	Sourcelight / Neuter, OEM

Application

40G Ethernet
Infiniband QDR, DDR and SDR
Datacenter and Enterprise networking

40G QSFP+ LR4 Product

PN	Description
QSFP-40G-IR4-PSM	40G psm IR4 QSFP+ Transceiver 1.4km over SMF

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. Dose your modules compatible to(HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

4. What is your warranty time
We promise 3 years warranty for all products shipped from us.

5. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.

6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,including products defects,.we could accept free exchange or return and refund.
